51 22 370 Removing and installing/replacing cover (seal) on rear door at bottom left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Detach seal (1) in direction of arrow from rear door.

Installation:

Clip clips (3) of cover correctly into bores.

Clips must not be damaged.

Installation:

Upper seal (2) must be mounted over seal (1).

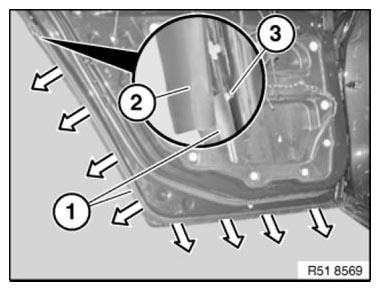

Fig 1: Removing Rear Door Seal
G08471886Courtesy of BMW OF NORTH AMERICA, INC.
