51 12 828 Removing and installing/replacing guide for rear left or right bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Unfasten screws (1 and 3).

Replace sheet nuts behind if necessary.

Unscrew nuts (2).

Remove guide (4).

Tightening torque 51 12 3AZ .

If necessary, remove TELEPHONE AERIAL .

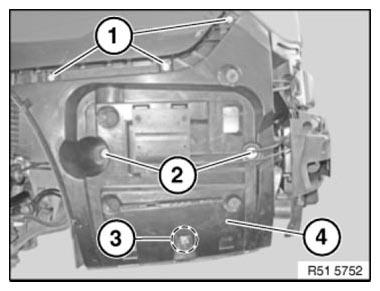

Fig 1: Identifying Bumper Guide, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
