51 12 825 Removing and installing/replacing guide for rear center bumper: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
If necessary, remove SENSOR FOR LANE CHANGE WARNING

NOTE: Operation is described on the left side.

The operation on the right side is the same as for the left side.

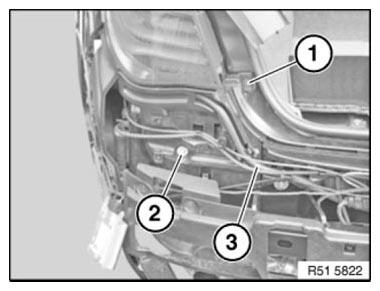

Fig 1: Identifying Rear Center Bumper Screw And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Slacken nut (2).

Tightening torque 51 12 2AZ .

Installation note:

Note line routing.

Unscrew nuts (1).

Tightening torque 51 12 2AZ .

If necessary, remove plug connection on bumper aerial for comfort access system.

Feed out guide (2) and remove.

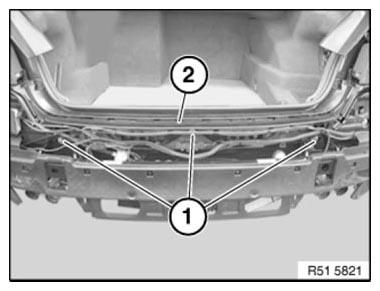

Fig 2: Identifying Bumper Aerial Guide And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
