51 12 050 Removing and installing/replacing support for rear bumper panel: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

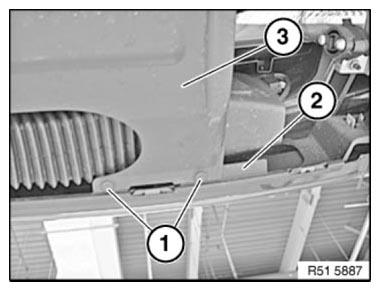

Lever out expander rivet (1) on adapter (2) and cover (3).

NOTE: Cover can vary.

The trailer tow hitch optional equipment is pictured.

Fig 1: Identifying Expander Rivet, Adapter And Cover

G08471682

Courtesy of BMW OF NORTH AMERICA, INC.

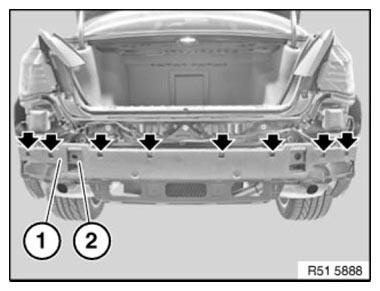

Unclip adapter (1) on bumper panel (2) at marked points.

If necessary, unlock and disconnect plug connections on control unit for RDC or Smart Opener.

Fig 2: Locating Bumper Panel Clamps

G08471683

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Operation is described on the left side. Right side identical.

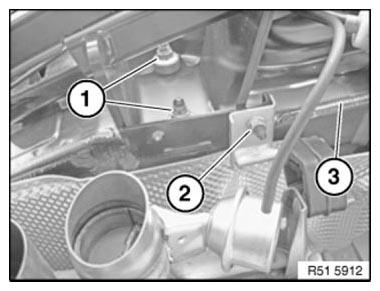

Unscrew nuts (1).

Tightening torque 51 12 1AZ .

Slacken nut (2).

Remove carrier (3).

Fig 3: Identifying Rear Bumper Carrier And Nuts

G08471684

Courtesy of BMW OF NORTH AMERICA, INC.
