51 46 050 Removing and installing/replacing top trim on rear apron

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 2 040

Release impact plates (1) with special tool 51 2 040 .

Fold luggage compartment floor trim panel.

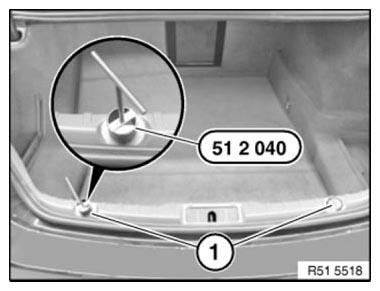

Fig 1: Releasing Impact Plates Using Special Tool (51 2 040)

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets (1).

Feed out trim (2).

Installation:

Make sure rubber seal (3) is correctly seated on trim (2).

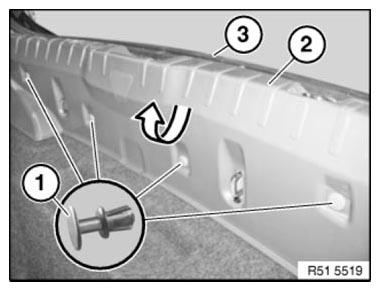

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
