51 46 028 Removing and installing/replacing rear air outlet trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear window shelf. See TRIM PANEL FOR STORAGE SHELF or TRIM PANEL FOR STORAGE SHELF WITH ROLLER SUNBLIND .

Release screws (1) and feed out air outlet trim (2) towards front.

Installation:

Make sure air outlet trim (2) is correctly seated in associated guides.

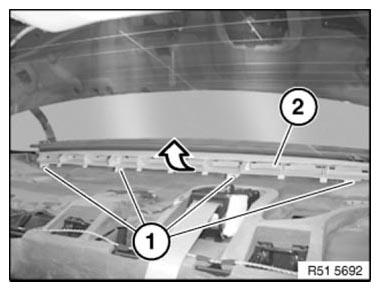

Fig 1: Removing Air Outlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) must not be damaged.

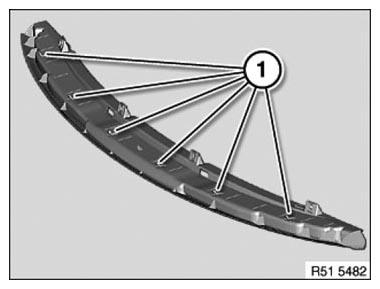

Fig 2: Identifying Outlet Trim Guides

Courtesy of BMW OF NORTH AMERICA, INC.
