51 46 013 Removing and installing/replacing rear window roller blind
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR STORAGE SHELF with roller sunblind
IMPORTANT:
Risk of damage!
Rod eyes of roller sunblind could break.
Rod eyes of roller sunblind could break.

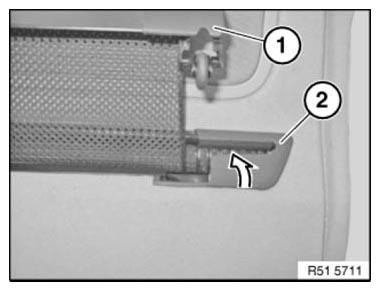

Carefully pull out rear window roller blind (1) a little.
Lever out protective cap (2) on left or right with plastic wedge.
Installation note:

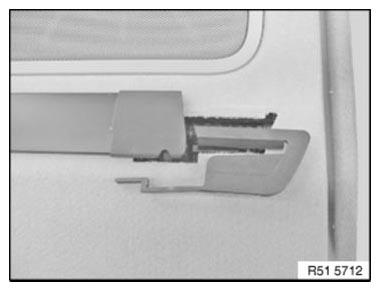

Protective caps must not be damaged or missing.
Renew protective cap if necessary.
Make sure protective cap is correctly seated in storage shelf.

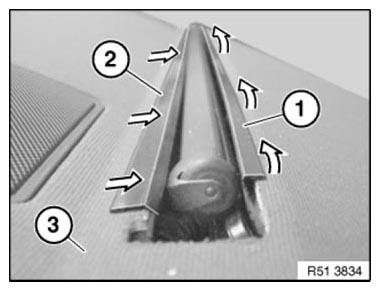

Press rear groove (1) and front guide (2) together slightly.
Lift out oddments tray (3) over rear groove (1) of rear window roller blind.
Pull front guide (2) out of oddments tray (3) and remove roller sunblind downwards.
Installation note:
Make sure front guide (2) is correctly seated in rear storage shelf.
