51 16 400 Removing and installing/replacing roller sunblind on fixed side window of left or right rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Extend the roller sunblind (2).

Unclip the window guide cover (1).

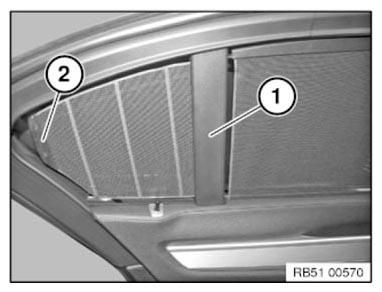

Fig 1: Identifying Window Guide Cover And Roller Sunblind

G08471797

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the cam arm (1) from the roller sunblind (2).

Installation note:

Attach the cam arm (1) and secure with bolts.

Check function.

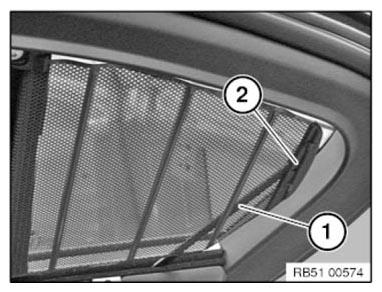

Fig 2: Identifying Cam Arm And Roller Sunblind

G08471798

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the protective film off the adhesive tape (1) of the new sunblind cloth.

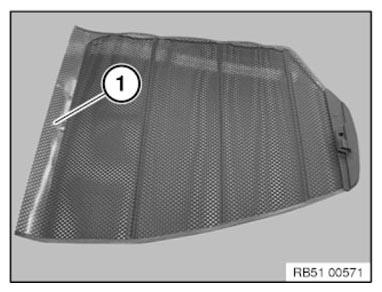

Fig 3: Identifying Adhesive Tape

G08471799

Courtesy of BMW OF NORTH AMERICA, INC.

Completely roll out the sunblind cloth (2).

Clean the rod.

Set the new sunblind cloth (1) inside exactly matching onto the defective sunblind cloth (2).

Retract both sunblind cloths together slowly in two turns.

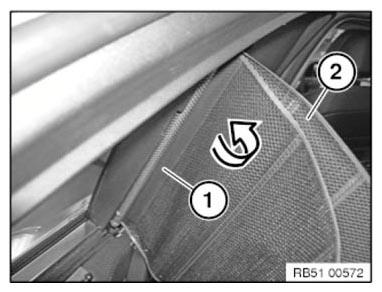

Fig 4: Cleaning Rod Using Sunblind Cloth

G08471800

Courtesy of BMW OF NORTH AMERICA, INC.

Completely extend the new sunblind cloth (1).

Pull off the defective sunblind cloth (2) in direction of arrow.

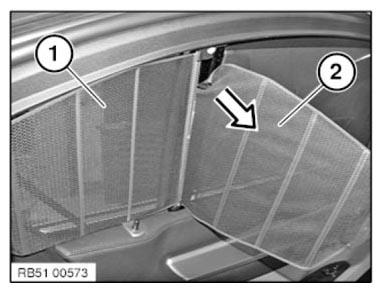

Fig 5: Pulling Defective Sunblind Cloth

G08471801

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The sunblind cloth (1) must run behind the lug (2).

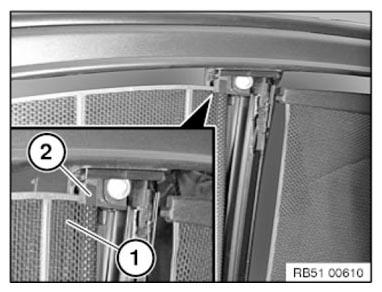

Fig 6: Identifying Sunblind Cloth And Lug

G08471802

Courtesy of BMW OF NORTH AMERICA, INC.
