51 16 373 Removing and installing/replacing lock for glovebox cover on left or right (glovebox handle)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Open glovebox cover

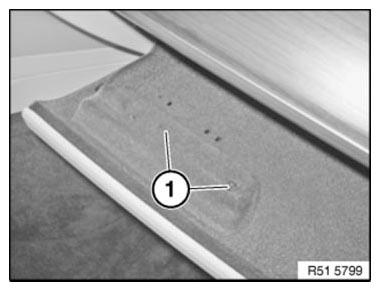

Release screws (1).

Fig 1: Identifying Glovebox Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

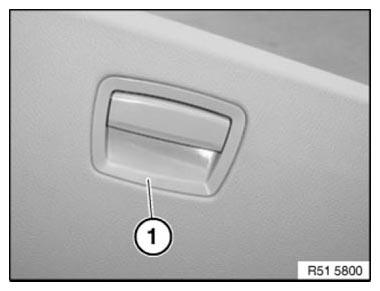

Remove handle lock (1).

Fig 2: Identifying Handle Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

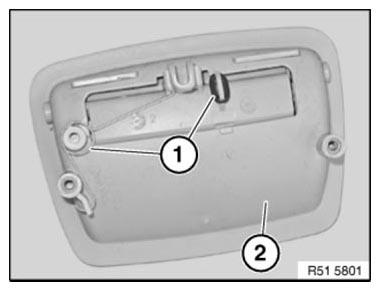

Make sure spring and rubber (1) of handle (2) are correctly seated.

Fig 3: Identifying Spring, Rubber And Handle

Courtesy of BMW OF NORTH AMERICA, INC.
