51 16 355 Removing and installing/replacing driver's side hinged compartment: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Release screws (1).

Tightening torque 51 45 6AZ .

Remove fold-down compartment on driver's side (2) in direction of arrow while unclipping or detaching at the bottom

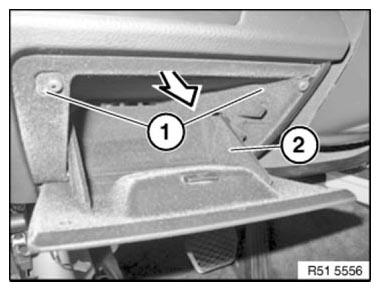

Fig 1: Removing Fold-Down Compartment On Driver's Side

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure driver's side hinged compartment (2) is correctly seated.

In F01/02/03 only:

Replace defective retainers (1).
