51 16 274 Removing and installing/replacing rear center console

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove mat insert (1).

Fig 1: Identifying Mat Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 16 12AZ .

Unfasten screws (2).

Tightening torque 51 16 12AZ .

Remove center console.

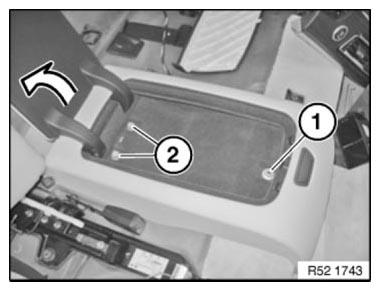

Fig 2: Removing Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
