51 16 227 Removing and installing/replacing trim on center console at side left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

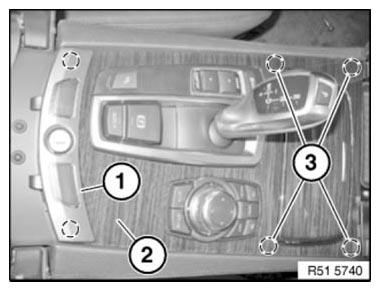

Unclip front center armrest trim (1).

Release screws underneath.

Unclip center console trim (2) at points (3) and remove.

IMPORTANT: Do not disconnect plug connections behind.

Fig 1: Identifying Center Console Trim And Fastener Trim

Courtesy of BMW OF NORTH AMERICA, INC.

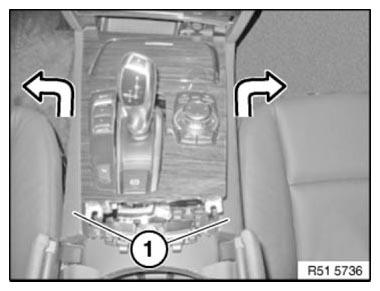

Remove trims (1) on left/right in direction of arrow.

Fig 2: Removing Left/Right Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

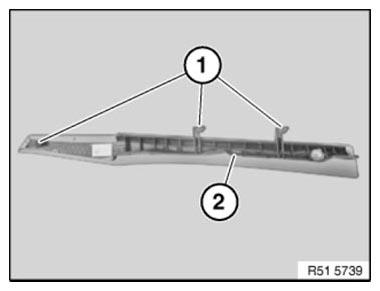

Pay attention to correct guides (1) on trim (2).

Fig 3: Identifying Guides And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
