51 16 190 Removing and installing/replacing lock cylinder in center armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.

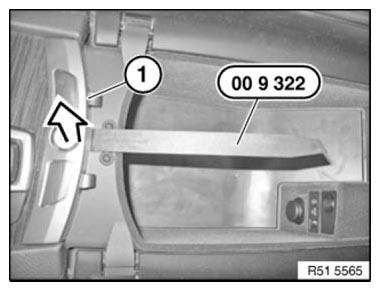

Fig 1: Removing Front Centre Armrest Trim Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Turn ignition key (1) in direction of arrow to left.

Carefully press lock cylinder (2) upwards with a suitable tool and remove from center armrest (3).

Installation:

Make sure lock cylinder (2) is correctly seated.

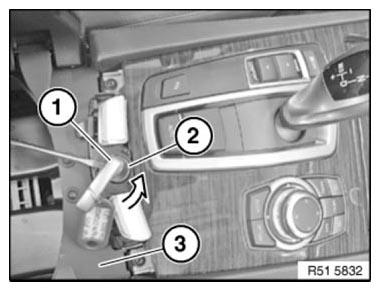

Fig 2: Turning Ignition Key

Courtesy of BMW OF NORTH AMERICA, INC.
