Preparation of new part

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

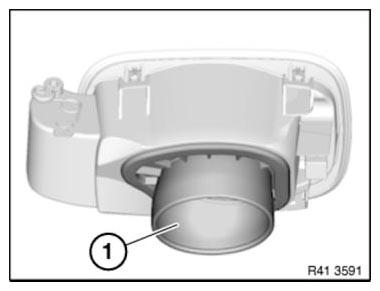

Remove rubber collar (1) from new part.

Fig 1: Identifying Rubber Collar

G08471831

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

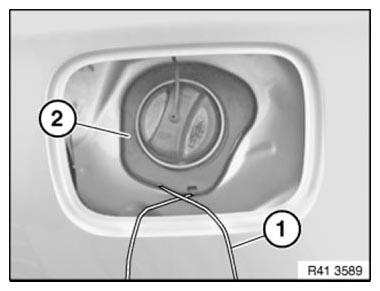

Fit approx. 0.5 m long cable (1) in groove on rubber collar (2).

Fig 2: Identifying Cable And Rubber Collar

G08471832

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

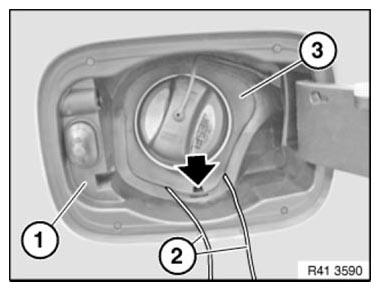

Install cover bowl (1).

Thread ends of cable (2) outwards.

Align bottom rubber collar (3) with recess (see arrow in illustration).

Pull rubber collar (3) over the cover bowl by pulling the ends of cables (2).

Fig 3: Identifying Cover Bowl, Cable And Rubber Collar

G08471833

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

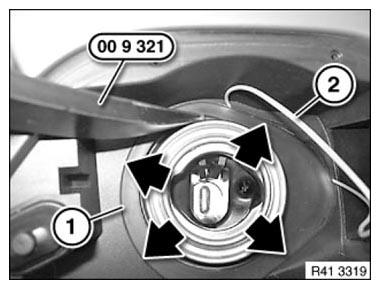

Slowly pull out cable ends (2).

Press rubber collar (1) into groove with special tool 00 9 321 .

Fig 4: Pressing Rubber Collar Into Groove Using Special Tool (00 9 321)

G08471834

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover bowl (2) must snap into place 4 times.

After installing, carefully check cover bowl at clips for secure fit.

There must be no discernible gap between the sealing lip of the cover bowl and the side panel in the area.

Make sure rubber collar (1) is correctly seated (watertightness).

Fig 5: Identifying Rubber Collar And Cover Bowl

G08471835

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

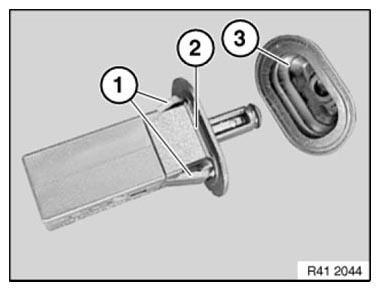

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

(Watertightness!)

Fig 6: Identifying Catches, Ejector And Protective Cap

G08471836

Courtesy of BMW OF NORTH AMERICA, INC.
