41 63 000 Removing and installing flap for fuel filler neck

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illustration is a schematic representation and is to be applied to the relevant vehicle type.

Open fuel filler flap.

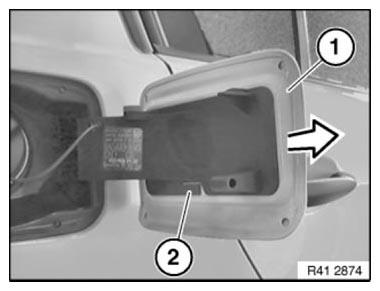

Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.

Fig 1: Removing Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.
