51 45 470 Removing and installing/replacing driver's side hinged compartment panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT
Remove HINGED COMPARTMENT ON DRIVER'S SIDE

Release screws (1).

Remove hinged compartment panel (2) and unlock and disconnect plug connection behind.

Installation:

Make sure hinged compartment panel (2) is correctly seated.

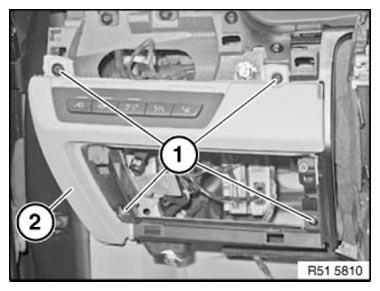

Fig 1: Identifying Hinged Compartment Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove CONTROL ELEMENT FOR DRIVER ASSISTANCE SYSTEM .
