51 45 370 Removing and installing (replacing) left decorative strip on dashboard: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

NOTE: Graphic shows F01.

Carefully remove decorative strip (1) 00 9 317 with special tool and disconnect plug connection behind.

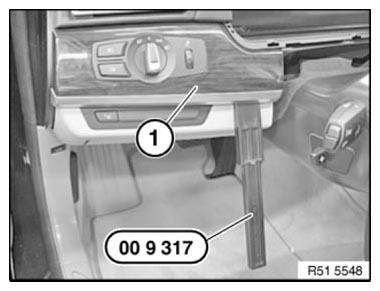

Fig 1: Removing Decorative Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure clamps (1) are correctly seated on decorative strip (2).

Replace defective clamps.
