51 45 195 Removing and installing/replacing trim for lower right instrument panel (ECE only): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (3) and remove carpet cover (4) towards front.

Release screws (1).

Detach trim panel (2) and drop slightly.

Disconnect plug connections at the back.

Remove trim (2) in direction of arrow.

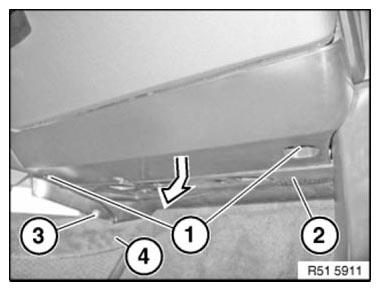

Fig 1: Removing Carpet Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace retainers (1).
