Adjustment procedures

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Screw in stop pad until the paper strip can be easily pulled out.

Then unscrew stop pad until the paper strip cannot be pulled out any more.

Screw in stop pad until the paper strip can be pulled out "with slight resistance".

Version 4:

Lever out expanding rivets (1).

Remove stop pad (2).

Adjusting version 4:

Set stop pad to the correct height by turning to the left or right.

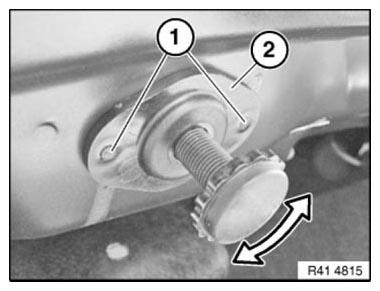

Fig 1: Adjusting Stop Pad (Version 4)

Courtesy of BMW OF NORTH AMERICA, INC.
