51 23 201 Removing and installing/replacing release mechanism for retaining hook on engine compartment lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Screw connection only:

Release screws (1) on engine compartment lid (2).

Unhook Bowden cables (4) from release element (3).

Remove release element (3).

Fig 1: Identifying Bowden Cable, Engine Compartment Lid, Element And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Riveting:

Drill off blind rivets (1).

Unhook Bowden cables (2) from release element (3).

Remove release element (3).

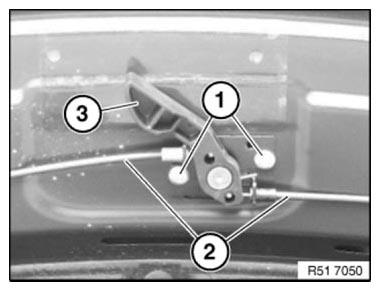

Fig 2: Identifying Blind Rivets, Bowden Cables And Release Element

Courtesy of BMW OF NORTH AMERICA, INC.
