51 23 110 Removing and installing/replacing left engine compartment lid catch (from 08/2008): Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Engine compartment lid catch with microswitch:

Feed wiring harness (1) completely out of microswitch (2).

Raise retaining tab (3) of microswitch (2) and remove microswitch (2) in direction of arrow.

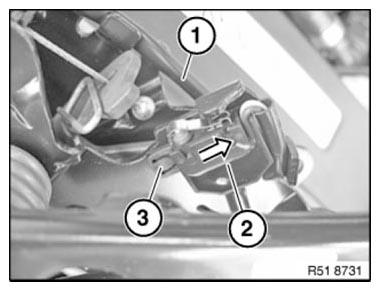

Fig 1: Removing Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.
