51 23 110 Removing and installing/replacing left engine compartment lid catch (from 08/2008): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR CONNECTION .

Release remaining screws (1) on engine compartment lid catch (2).

Tightening torque 51 23 2AZ .

Raise engine compartment lid catch (2).

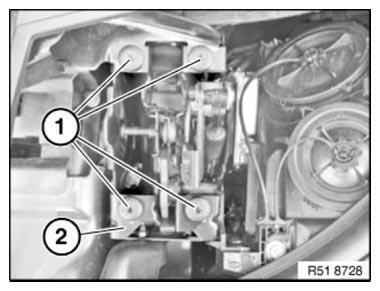

Fig 1: Identifying Engine Compartment Lid Lock And Screws

G08471949

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

Detach plug connection (1) by twisting from catch carrier.

Unfasten plug connection (1) and disconnect.

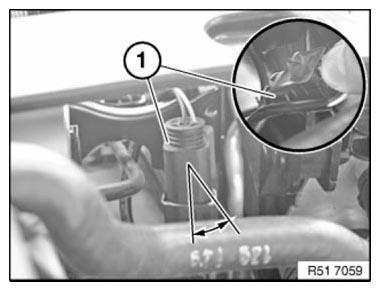

Fig 2: Identifying Engine Compartment Lid Catch Plug Connection

G08471950

Courtesy of BMW OF NORTH AMERICA, INC.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

Remove engine compartment lid catch.

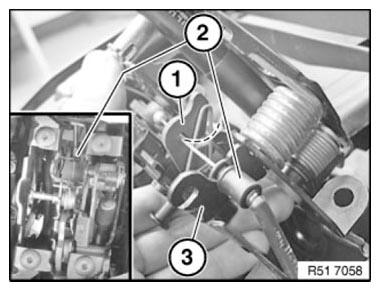

Fig 3: Identifying Bowden Cable, Release Lever And Catch Carrier

G08471951

Courtesy of BMW OF NORTH AMERICA, INC.
