51 71 346 Removing and installing / replacing right (rear) suspension cross-brace

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the suspension cross-brace is not permitted! (risk of damage to the body).

Release expanding rivet (1) and remove cover (2).

Installation note:

Replace damaged expanding rivet.

Holder of cover (2) must snap into place in suspension cross-brace during installation.

Fig 1: Identifying Expanding Rivets And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 61 1AZ .

Remove suspension cross-brace (2).

Installation note:

Make sure suspension cross-brace (2) is in correct installation position.

Replace screw (1).

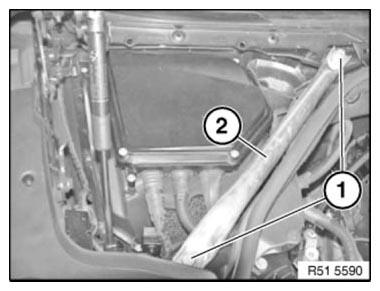

Fig 2: Identifying Suspension Cross-Brace And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
