51 71 345 Removing and installing / replacing left (rear) suspension cross-brace

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the suspension cross-brace is not permitted! (risk of damage to the body).

Release expanding rivet (1) and remove cover (2).

Installation note:

Replace damaged expanding rivet.

Holders (3) must snap into place in suspension cross-brace when cover (2) is installed.

Fig 1: Identifying Expanding Rivets, Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 61 1AZ .

Remove suspension cross-brace (2).

Installation note:

Make sure suspension cross-brace (2) is in correct installation position.

Replace screws (1).

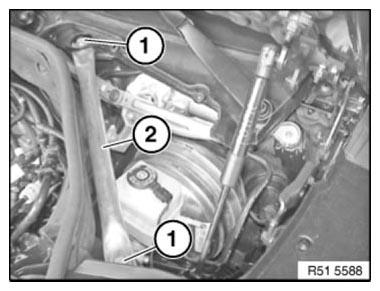

Fig 2: Identifying Suspension Cross-Brace And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
