Position of seal (3) on rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

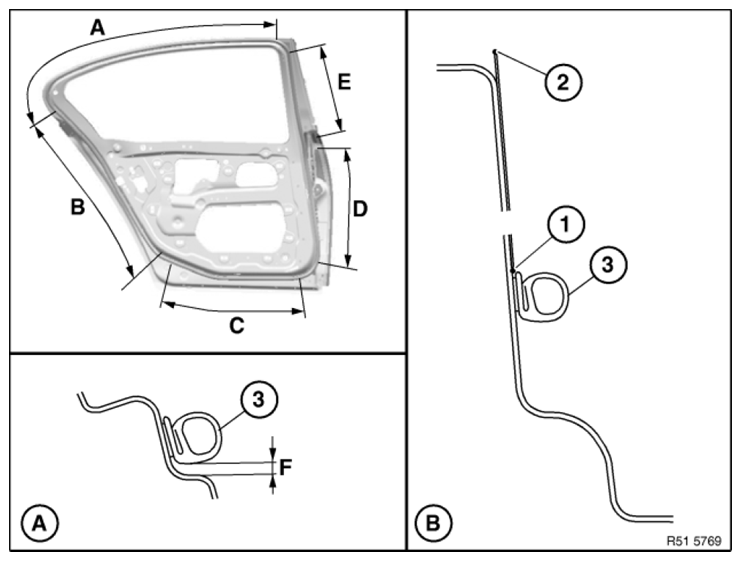

Fig 1: Identifying Position Of Seal On Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Area (A) at distance (F) to door rabbet.

Area (B) at line (1) of positioning aids (2) to be stuck on (observe following work steps).

Clean bonding surfaces on paint with adhesive cleaner (sourcing reference: BMW Parts Department).

F = 3.6 mm

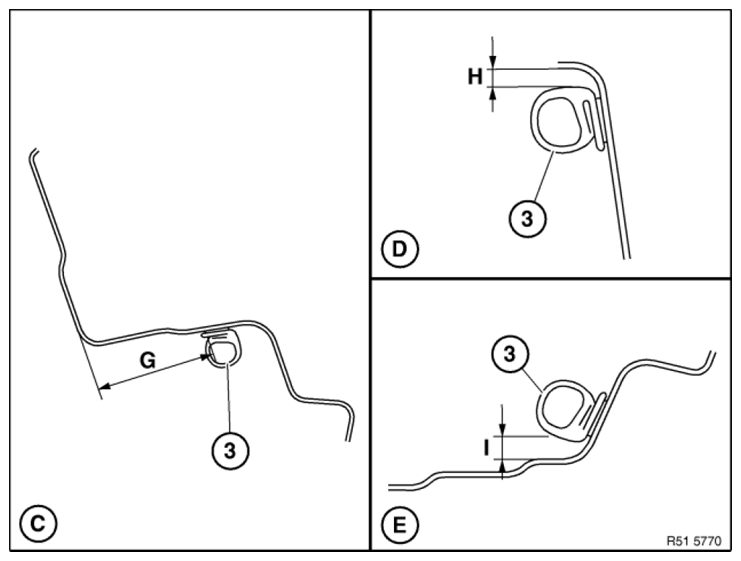

Fig 1: Identifying Position Of Seal On Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Area (C) at distance (G) to inner door panel.

Area (D) at distance (H) to door rabbet.

Area (E) at distance (I) to door rabbet.

Clean bonding surfaces on paint with adhesive cleaner (sourcing reference: BMW Parts Department).

G = 55.3 mm

H = 4.4 mm

I = 6.7 mm
