Positioning aid "A1" for front door, left ("B1" right)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.
- Positioning aid "A1" front door, left (door lock, top)
- Positioning aid "B1" front door, right (door lock, top)

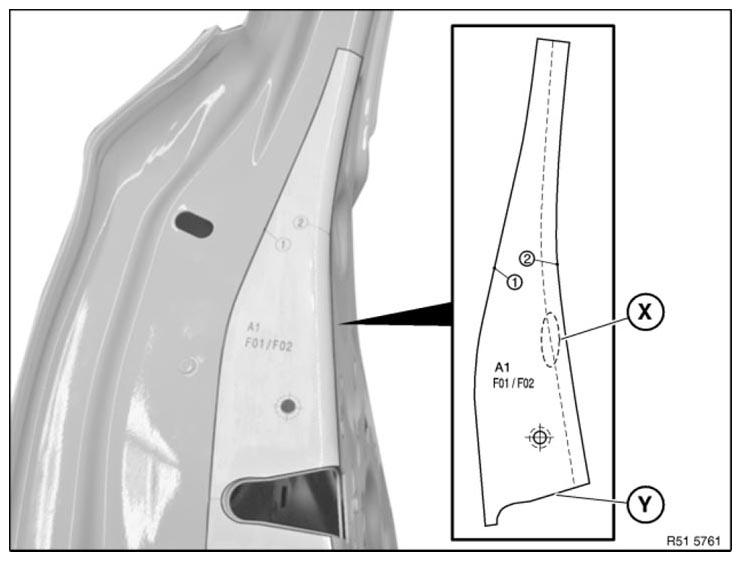

If necessary, cut out prestamped cut-out for bore hole from positioning aid. Align positioning aid with printed marks (X and Y) and contact edge (2) to front door and press.
Seal must rest on positioning aid (1) during bonding.
X Start of bending radius
Y Recess for door lock
