Position of seal (1) on front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

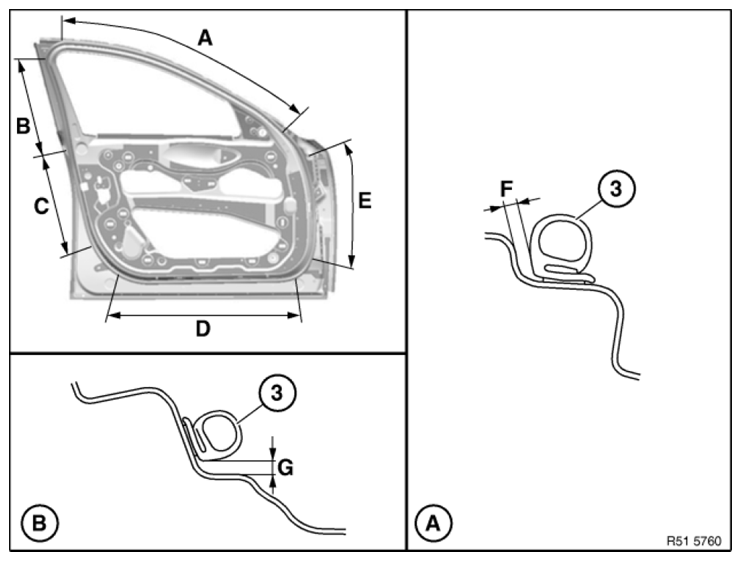

Fig 1: Identifying Seal Applying Area On Front Door
G08472317Courtesy of BMW OF NORTH AMERICA, INC.

Area (A) at distance (F) to door fold.

Area (B) at distance (G) to door fold.

Clean bonding surfaces on paint with adhesive remover (sourcing reference: BMW Parts Service).

  1. F = 3.5 mm
  2. G = 4, 8 mm
