51 71 041 Removing and installing/replacing rear left or right wheel arch cover
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR WHEEL

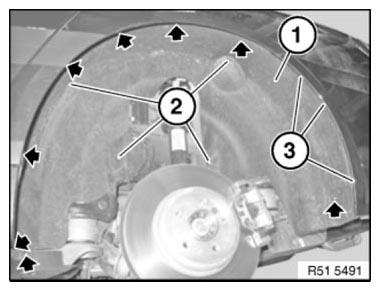

Release all marked screws (arrows).
Release screws (3).
Unscrew nuts (2).
Carefully feed out rear wheel arch cover (1) towards bottom.
Installation note:
Ensure wheel arch cover (1) is correctly seated.
Make sure all screws are installed in correct position.
Screws (3) are longer than remaining screws.
