51 71 015 Removing and installing/replacing left or right underbody panelling
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR UNDERBODY PROTECTION
Unscrew all bolts.
Tightening torque 51 75 1AZ .

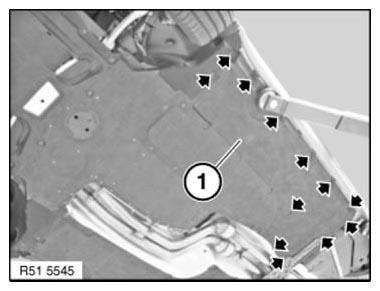

Remove underbody panelling (1).
Installation note:
Make sure underbody panelling (1) is correctly seated.
