51 64 010 Removing and installing/replacing left or right V-support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the V-support is not permitted (risk of damage to the body).

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL .

Undo screw connection (2) on V-braces.

Tightening torque 51 61 6AZ .

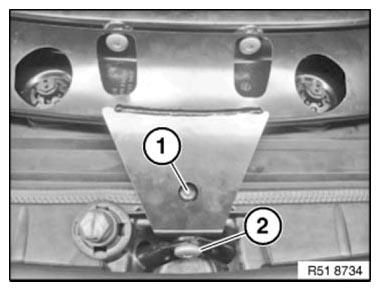

Fig 1: Identifying Screw Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolt (1) on V-brace (3) on left or right.

Tightening torque 51 11 7AZ .

Maneuver out V-support (3) upwards.

Installation note:

Hose pipe (2) for headlight washer system high-pressure nozzle (right) must be correctly clipped into place at marked points.

Fig 2: Locating Hose Pipe Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
