51 48 060 Removing and installing sound insulation on left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM

IMPORTANT: Risk of mixing up plugs for door lock and control unit!

Mark relevant plugs prior to removal.

Disconnect plug connection (1).

Feed door wiring harness (2) out of cable holders (3).

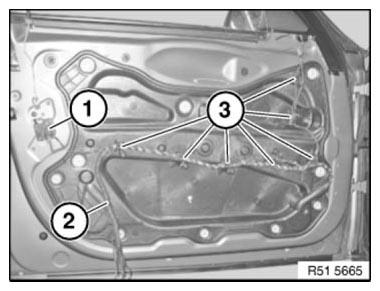

Fig 1: Identifying Plug Connection, Door Wiring Harness And Cable Holders

G08471844

Courtesy of BMW OF NORTH AMERICA, INC.

Release quick-release couplings.

Remove sound insulation (1).

Installation:

If necessary, replace defective quick-release couplings.

Make sure quick-release couplings are installed in correct position.

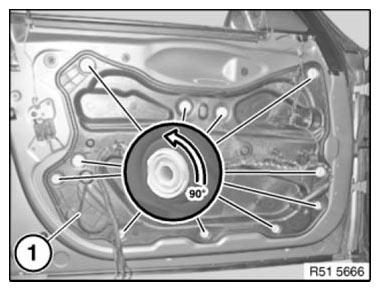

Fig 2: Identifying Sound Insulation

G08471845

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal on sound insulation must not be damaged.

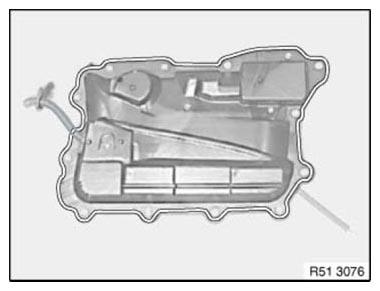

Fig 3: Identifying Seal Applying Area On Sound Insulation

G08471846

Courtesy of BMW OF NORTH AMERICA, INC.
