51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Example shown on F01: There may be differences in detail in the case of other vehicle types.

Release all expanding rivets/clips on damping material (1).

Remove damping material (1).

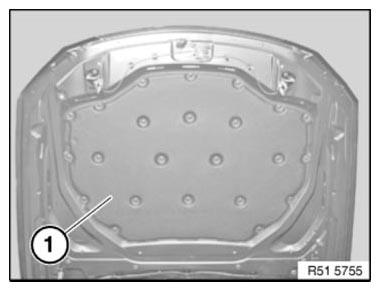

Fig 1: Identifying Damping Material

Courtesy of BMW OF NORTH AMERICA, INC.
