51 33 000 Removing and installing / replacing power window regulator in left or right front door: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove FRONT DOOR WINDOW GLASS

Slacken bolt (1).

Tightening torque 51 33 3AZ .

Release screws (4).

Tightening torque 51 33 2AZ .

Unfasten plug connection (3) and disconnect.

Installation note:

Holder (2) must be correctly seated on inner door panel rail.

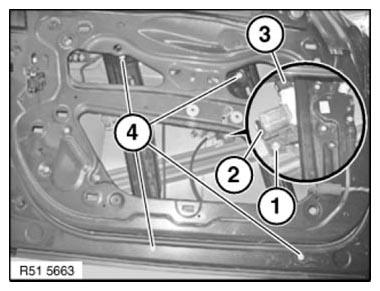

Fig 1: Identifying Plug Connection, Holder, Screws And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of power window regulator:

Feed out left-hand window lift rail
Feed out right-hand window lift rail

Fig 2: Identifying Right And Left Hand Window Lift Rail
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure the guide lug (2) of the power window (1) is correctly seated in recess of door structure.

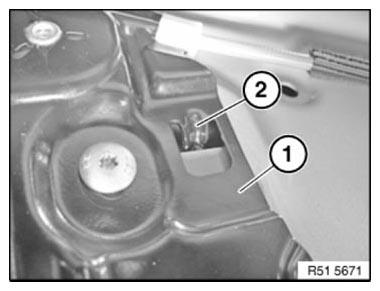

Fig 3: Identifying Guide Lug And Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
