51 41... Replacing speaker cover on left or right front door trim panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT MID-RANGE SPEAKER .

Open plastic welded joints.

Unlock latch mechanisms (1).

Remove speaker cover (2).

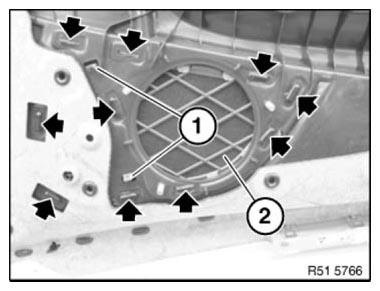

Fig 1: Locating Latch Mechanisms And Speaker Cover Mounting Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new speaker cover (2).

Latch mechanisms (1) must be correctly seated in corresponding guides.

Secure clamps (3) as pictured to all marked plastic guides.

Speaker cover (2) must be secured without play.

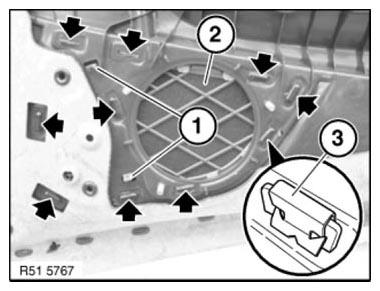

Fig 2: Identifying Latch Mechanisms, Speaker Cover And Mounting Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
