51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) downwards in direction of arrow from front door (2).

Installation:

Clip clips of cover (1) correctly into bores (3).

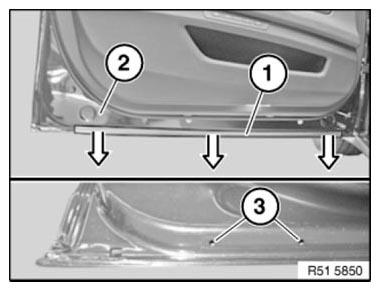

Fig 1: Detaching Front Door Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note installation direction of cover (1).
Curve of sealing lip (2) must point away from door frame (3).

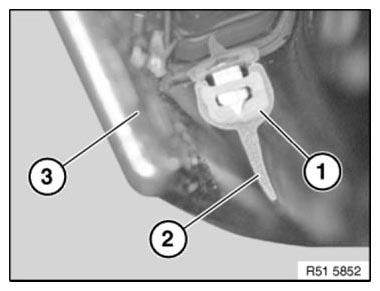

Fig 2: Identifying Cover, Sealing Lip And Door Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

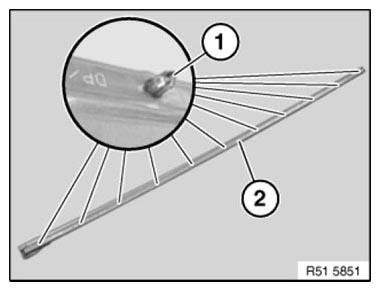

Fig 3: Identifying Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
