51 21 225 Removing and installing/replacing inside door opener in left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DOOR TRIM PANEL AT FRONT LEFT

Release screws (1).

Carefully remove door opener (2).

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

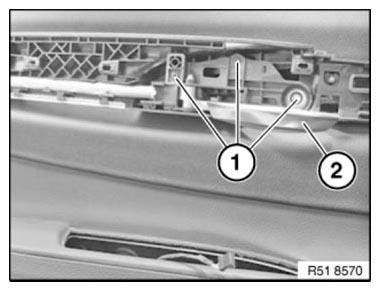

Fig 1: Identifying Door Opener And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock holder for Bowden cable (1) and remove door opener (2).

Fig 2: Unlocking Door Trim Panel Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
