51 21 126 Removing and installing/replacing carrier for left or right outside door handle without lock cylinder: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTER HANDLE
Remove TRIM ON WINDOW FRAME OF FRONT DOOR

Close side window (1); in so doing, do not crush or pinch rubber guides (2).

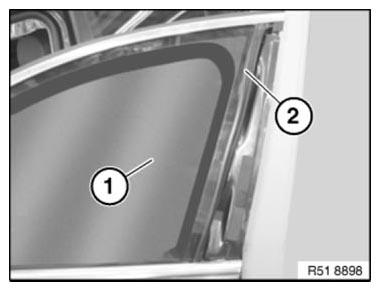

Fig 1: Identifying Pinch Rubber Guides And Side Window

G08471851

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from cover (2).

Remove cover (2).

Installation:

Insert rubber seal (3) correctly in guides on door outer skin.

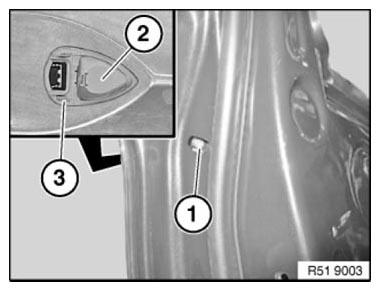

Fig 2: Identifying Rubber Seal, Cover And Screw

G08471852

Courtesy of BMW OF NORTH AMERICA, INC.

Release fixing screw (1).

Remove plastic guide underneath.

Installation:

Correctly insert retaining lug (2) and move to stop.

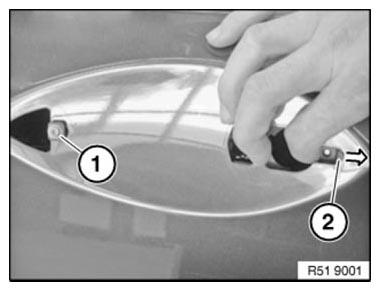

Fig 3: Inserting Retaining Lug

G08471853

Courtesy of BMW OF NORTH AMERICA, INC.

Turn carrier for door outside handle (1) approx. 90° and feed out below.

Installation:

Ensure correct Bowden cable installation position.

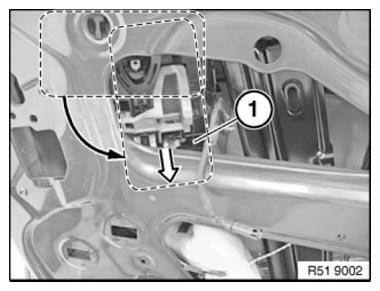

Fig 4: Turning Door Outside Handle Carrier

G08471854

Courtesy of BMW OF NORTH AMERICA, INC.
