51 21 003 Replacing door detent (lock striker), front left or right: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove door detent (2).

Installation note:

If necessary, carry out basic adjustment by way of notches (3) on door detent (2) and B-pillar.

Tightening torque 51 21 2AZ .

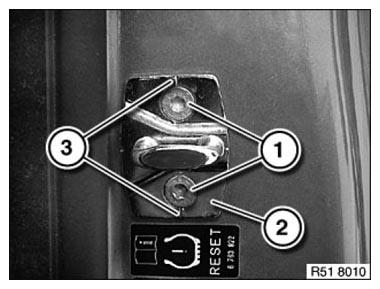

Fig 1: Identifying Door Detent, Notches And Screws
G08471880Courtesy of BMW OF NORTH AMERICA, INC.
