Laying cutting wire around window glass

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Make sure the cutting wire is located at all four corner points below the window glass.
Check that the cutting wire is not caught on clamps or body.
Secure window glass on outside with adhesive tape against sliding.

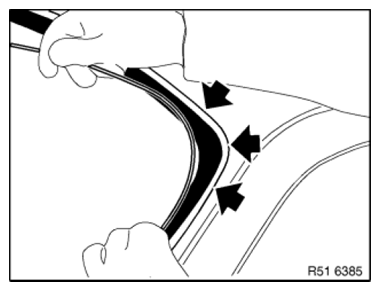

Fig 1: Securing Cutting Wire Around Window Glass
G08472022Courtesy of BMW OF NORTH AMERICA, INC.

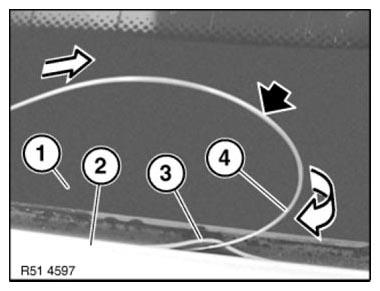

NOTE: Window glass (1) with installed seals (3) or molded-on surrounds:
