3.10 Adjusting the window glass

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

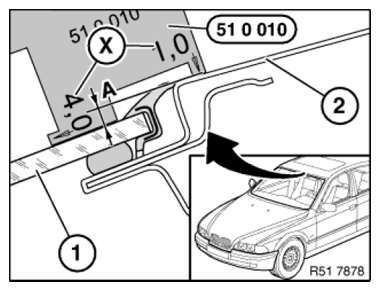

Fig 1: Adjusting Window Glass Using Suction Lifter (51 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid wind noise, the front and rear windows (1) must be lower than the roof outer skin (2).

Check height of the windscreen or rear window using special tool 51 0 010 .

Dimension (A) of window glass offset, refer to vehicle-specific repair instructions.

X = measurement stages 1... 4 mm
