51 31 241 Removing and installing/replacing rear window cover (top)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 320

Necessary preliminary tasks:

Remove REAR WINDOW

Observe NOTE on component bonding with adhesive tape!

Detach cover (1).

Remove remnants of adhesive tape (2).

Clean bonding surface.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

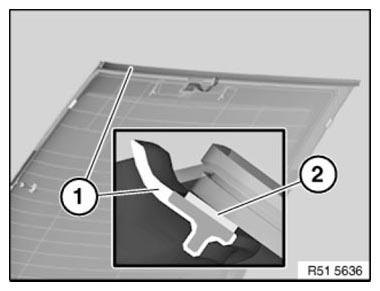

Fig 1: Identifying Cover And Adhesive Tape

G08472036

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-treat adhesive area with Sika-Aktivator-205 applicator.

Air drying time: ≥ 1 minute

Reposition lever (1) and open special tool 51 3 320 .

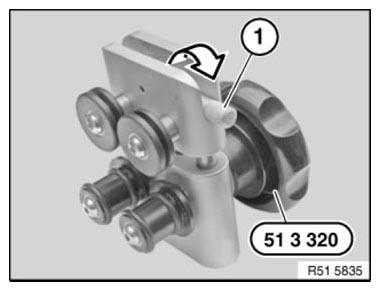

Fig 2: Positioning Of Lever

G08472037

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off protective film (2) in stages from adhesive tape.

Insert cover (1) in guide pulleys (3).

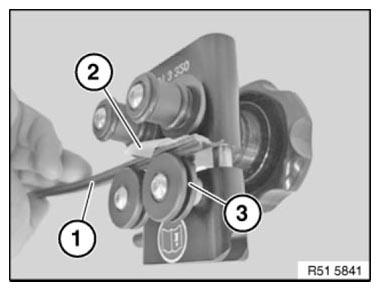

Fig 3: Inserting Cover In Guide Pulleys

G08472038

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool with contact rollers (1) up against upper window edge.

Align cover to window outer edge.

Fit cover and visually check for perfect seating.

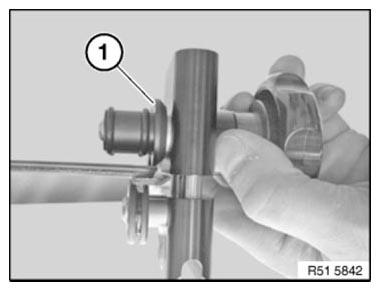

Fig 4: Aligning Cover With Window Outer Edge

G08472039

Courtesy of BMW OF NORTH AMERICA, INC.

Reposition lever (1) and close special tool.

Make cover (3) is correctly seated in guide pulleys (2).

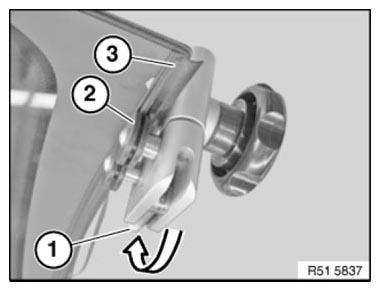

Fig 5: Positioning Of Lever

G08472040

Courtesy of BMW OF NORTH AMERICA, INC.

Continue to pull off protective film (1) in stages from adhesive tape.

Run special tool with handwheel over entire upper window edge.

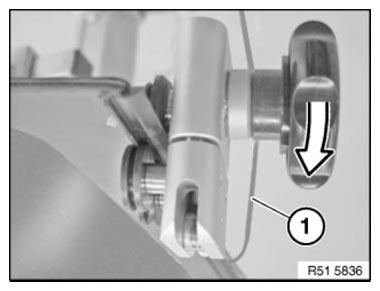

Fig 6: Pulling Protective Film

G08472041

Courtesy of BMW OF NORTH AMERICA, INC.
