Overview of rear window bonding

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

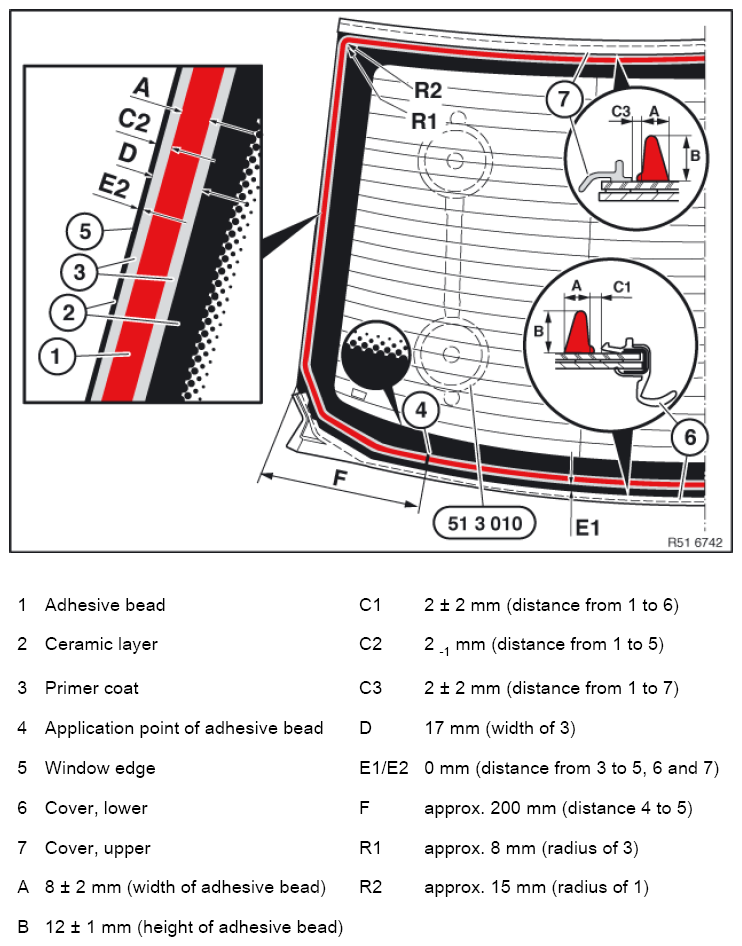

Fig 1: Identifying Rear Window Bonding Overview

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cables of heated rear window/-aerial(s) with adhesive tape.

Fit rubber frames (6 and 7) in middle.

IMPORTANT: Observe cover pressure. The cover pressure represents the outer edge of the non-squashed adhesive bead. Lay adhesive bead within the cover pressure.

Carefully install rear window with suction lifter (51 3 010) as follows:

Fix tailgate at 45°
Feed in rear window between tailgate and body
Position at top on roof edge
Align sides evenly

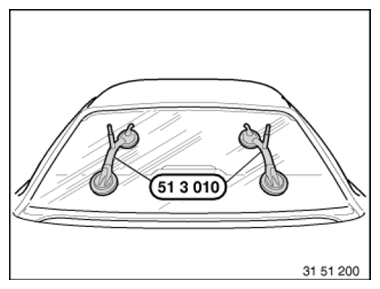

Fig 2: Installing Rear Window Using Special Tools (51 3 010)
Courtesy of BMW OF NORTH AMERICA, INC.
Insert at bottom and press down
Press upwards until sealing is uniformly contacting roof
Press down at bottom until rubber frame is uniformly in place
Secure rear window in this position with the two yellow plastic adhesive tapes

Installation note:

The required gap dimension from the window edge to the body aperture all round is:

5.5 mm
