Adjusting pre-tension on rear window

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

In order to avoid wind noises, rear window (1) must be lower than roof outer skin (2).

Position special tool 51 0 010 in center of vehicle depending on dimension (A) and check underprotrusion of rear window (1).

A = 3.5 mm

X = measurement stages 1... 4 mm

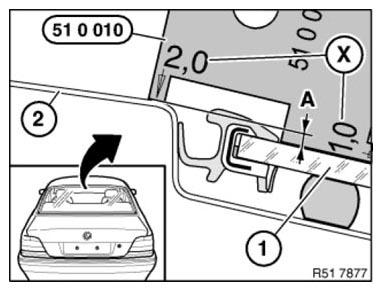

Fig 1: Checking Underprotrusion Of Rear Window Using Special Tool (51 0 010)
G08472035Courtesy of BMW OF NORTH AMERICA, INC.
