Field of vision (no repairs)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

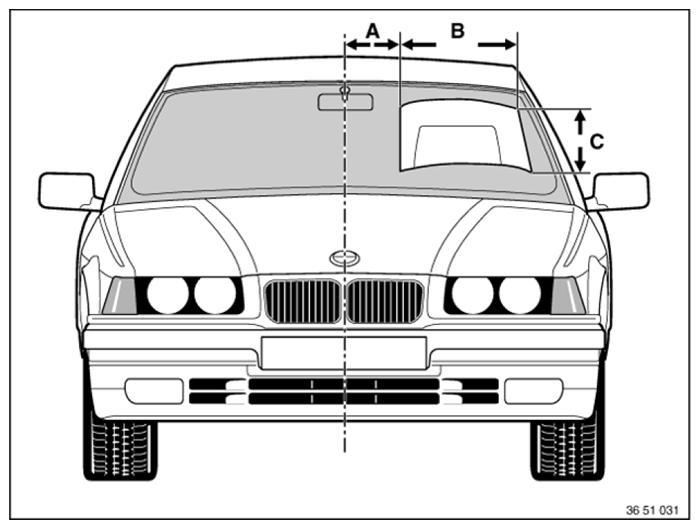

A 50 mm (gap between field of view / center of vehicle)
B Up to end of wiper range, outside (field of view width)
C Restriction by wiper range (field of view height)
IMPORTANT:
Repairs must only be carried out outside of the field of vision (refer to illustration).
If the stone chip damage is outside the field of vision, refer to REPAIR INSTRUCTION .
