Spacer buffer

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

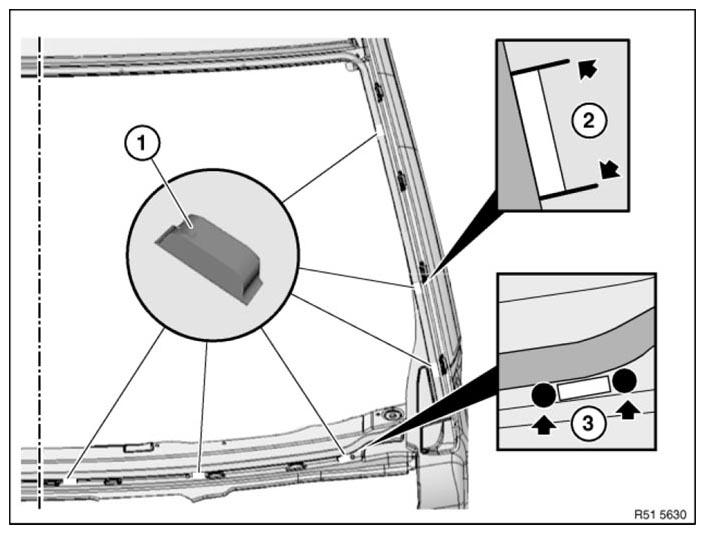

Fig 1: Locating Spacer Buffers A-Pillar And Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

To prevent windscreen breakage and wind noise, completely remove any remnants of removed spacer buffers and maintain the installation position exactly.

Installation position of spacer buffers (1) is determined on body side with marks (arrows) on A-pillar (2) and on cross member (3).

Spacer buffer to be used 5x5x20 mm.
