Expanding foam tape
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Observe NOTES on component-bonding with adhesive tape!
If necessary, renew RESILIENT SEALING TAPE for VIN number inspection glass on windscreen.

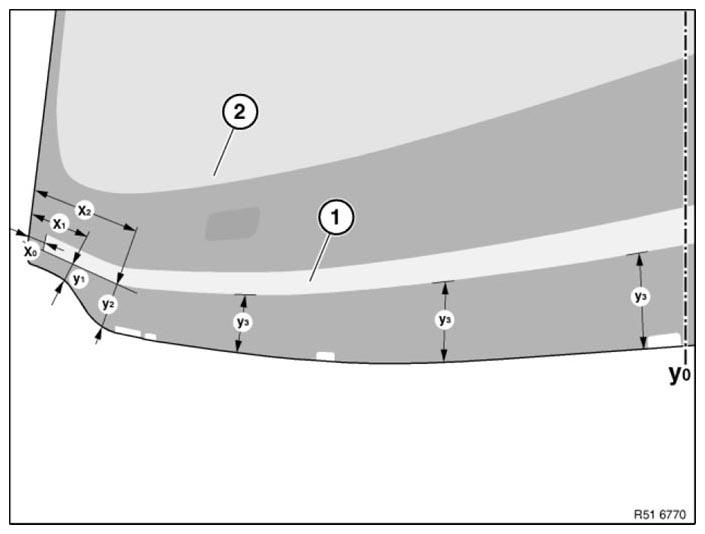

| Apply dimensions to right windscreen half in mirror-inverted fashion | |||
|---|---|---|---|
| All dimensions in mm | |||
| x0 = | 50 | Y0 = | Windscreen center |
| x1 = | 100 | y1 = | 25 |
| x2 = | 200 | y2 = | 55 |
| y3 = | 60 | ||

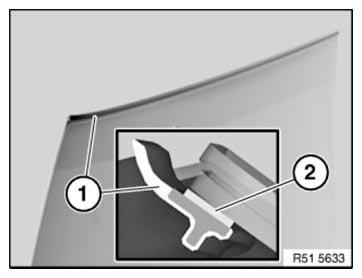

Install the COVER / RUBBER FRAME (1) for the windscreen.
