Detail view "X"

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Optimized adhesive bead progression (2) deviating from mark screen printing recesses (1) on windscreen.

Spacing, adhesive bead progression (2) to windscreen edge:

≥ 5.5 mm = Primer coat offset outwards by 5.5 mm to adhesive bead progression (2) with width 19 mm

< 5.5 mm = Primer coat coinciding with outer edge of adhesive bead progression (2) with width 17 mm

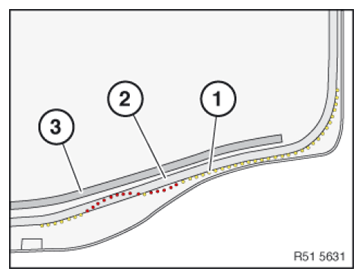

Fig 1: Identifying Adhesive Bead Applying Area On Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

3 = expanding foam tape

Perform the following steps carefully on the windscreen using siphon (51 3 010):

Insert between engine compartment lid and cowl panel
Position windscreen at top
Align sides evenly
Insert at bottom and press down
Press windscreen upwards until seal is uniformly contacting roof
Secure windscreen in this position with the two yellow plastic adhesive tapes

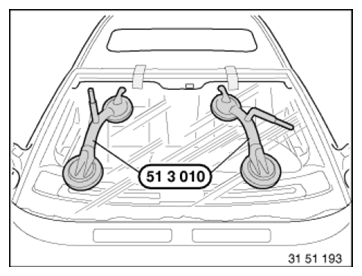

Fig 2: Securing Windscreen Using Special Tool (51 3 010)
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The required gap dimension from the window edge to the body aperture is:

Top ≥ 7 mm
Side ≥ 5 mm
