Depending on version

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Tape off body in area of piercing point with fabric adhesive tape.

Push wire from ROLL OUT 2000  along line (1) through adhesive bead (2).

For details on how to proceed, refer to: WINDOW REMOVAL WITH "ROLL OUT 2000" .

Lift out windscreen with suction cup.

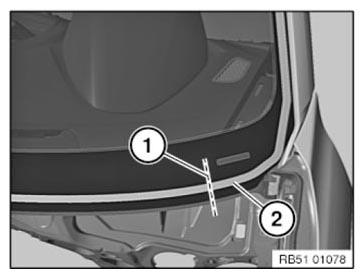

Fig 1: Identifying Wire Line And Adhesive Bead
G08472054Courtesy of BMW OF NORTH AMERICA, INC.
