Adjusting pre-tension on windscreen

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

In order to avoid wind noises, windscreen (1) must be lower than roof outer skin (2).

Position special tool 51 0 010 in middle of vehicle depending on measurement (A) and check underprotrusion of windscreen (1).

A = 4 mm without HUD

A = 3.5 mm with HUD

A = 3 mm with HUD and acoustics

X = measurement stages 1... 4 mm

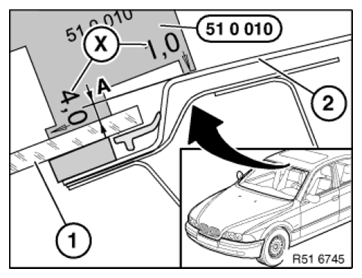

Fig 1: Adjusting Windscreen Pre-Tension Using Special Tool (51 0 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with HUD only:

Check HUD functions again and, if necessary, adjust the head-up display. See GENERAL NOTES ON THE HEAD-UP DISPLAY and ADJUSTING HEAD-UP DISPLAY .

Only with camera-based driver support systems:

Carry out camera calibration via diagnosis system.

Under Service Functions menu:

Body
- Lane departure warning
  - Calibrate camera
