51 47 243 Removing and installing/replacing all luggage compartment trims (without ski bag): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL

NOTE: The luggage compartment partition wall F02 with optional equipment rear air conditioning is shown.

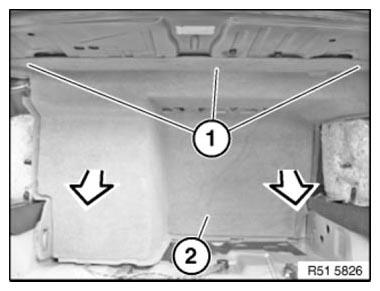

Lever out expanding rivet (1).

Feed out luggage compartment partition wall (2).

Fig 1: Removing Luggage Compartment Separating Wall Cover

Courtesy of BMW OF NORTH AMERICA, INC.

F01h and F02h only:

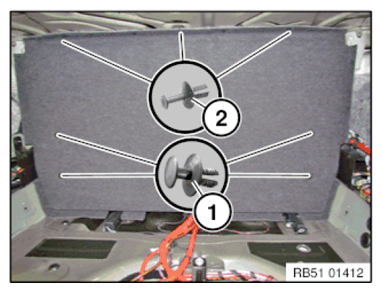

Release expanding rivets (1) and expanding rivets (2) and remove bulkhead panel (3).

Fig 2: Identifying Bulkhead Panel And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
